Carrier Rate Matrix Module
The Carrier Rate Matrix defines cost-based rates paid to external carriers or broker partners. These rates are used by the optimization engine to evaluate cost, calculate margin, and determine the most profitable routing options during dispatch and load planning. Each carrier may have one or more rate entries by lane, defined using city pairs, zip codes, or mileage brackets.
Table of Contents
Key Use Cases
-
Set flat-rate carrier costs by lane or region
-
Evaluate margin between customer revenue and carrier cost
-
Model weekly capacity commitments by lane
-
Support optimization by limiting mode, weight, or volume per trip
-
Drive tendering and carrier selection logic with committed pricing
Navigation Overview
Go to Settings > Rate Matrix.
Each row in the table represents a cost agreement with a third-party carrier.
Click the arrow next to a carrier to expand and view lanes.
Click a row to open the Rate Details Panel on the right.

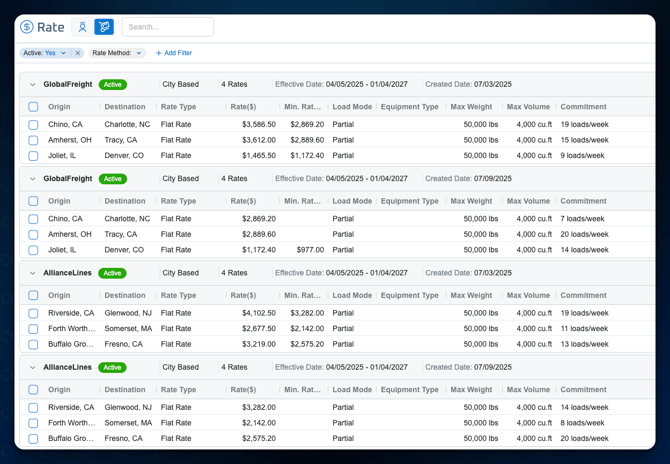

Rate Matrix Table View
|
Column |
Description |
|---|---|
|
Company Name |
Carrier name (e.g., PioneerFreight, MetroFreight) |
|
Active |
Indicates if the rate agreement is in use |
|
Rate Method |
Defines how the rate is structured (City Based, Mileage Based) |
|
Total Rates |
Number of origin-destination lanes configured |
|
Effective Date |
Start date of the contract period |
|
Expiration Date |
End date of the contract |
|
Created Date |
When the rate was entered into the system |
Rate Detail Panel
Each carrier’s rate details are shown in the right-hand panel when selected.
Each entry includes:
-
Effective / Expiration / Created Date
-
Origin → Destination
-
Rate ($)
-
Min. Commitment Rate ($)
-
Load Mode (e.g., Partial)
-
Equipment Type (optional)
-
Max Weight / Volume
-
Weekly Commitment (loads/week)
Example:
Carrier: PioneerFreight
Lane: Haverhill, MA → Las Vegas, NV
Rate: $4,102.50
Min. Rate: $3,282
Commitment: 9 loads/week
Load Mode: Partial
Max Weight: 50,000 lbs
Max Volume: 4,000 cu.ft
Data Dictionary
|
Field |
Description |
Example |
|---|---|---|
|
Company Name |
Carrier or broker being paid |
PioneerFreight |
|
Rate Method |
Basis of cost calculation |
City Based |
|
Rate Type |
Flat Rate or Tiered Cost |
Flat Rate |
|
Origin / Destination |
Directional lane covered by the cost rate |
Haverhill, MA → Las Vegas, NV |
|
Rate ($) |
Total payment to the carrier for a full load |
$4,102.50 |
|
Min. Commitment Rate ($) |
Minimum allowed per-load payment when commitments apply |
$3,282 |
|
Load Mode |
Whether load is FTL or Partial |
Partial |
|
Equipment Type |
Optional constraint for trailer compatibility |
Not specified |
|
Max Weight (lbs) |
Upper weight limit accepted by the carrier |
50,000 lbs |
|
Max Volume (cu.ft) |
Upper volume capacity accepted |
4,000 cu.ft |
|
Commitment |
Weekly volume commitment from the carrier |
9 loads/week |
|
Effective / Expiration |
Valid date range of the rate |
04/05/2025 – 01/04/2027 |
Rate Method Types
|
Method |
Description |
|---|---|
|
City Based |
Rates are tied to specific origin and destination cities |
|
Zip Based |
Rates are defined by zip code-to-zip code lanes |
|
Mileage Based |
Rate is calculated based on the loaded miles traveled |
