Table of Contents
Key Use Cases
-
Maintain contract rates for each customer by lane or zip code
-
Define per-load flat rate or tiered pricing for FTL/Partial loads
-
Track expiration dates and load volume commitments
-
Guide load selection based on minimum revenue thresholds
-
Inform dispatch and planning logic using contractual rules
Navigation Overview
Access the module from Resources > Rate.
The toggles in the header indicate Customer Rates (Left) or Carrier Rates (Right).
Each row in the Rate Matrix represents a pricing agreement with a customer.
You can filter by Active, Rate Method, Company Name, or Expiration Date.
Click a row to open the Rate Details Panel on the right.

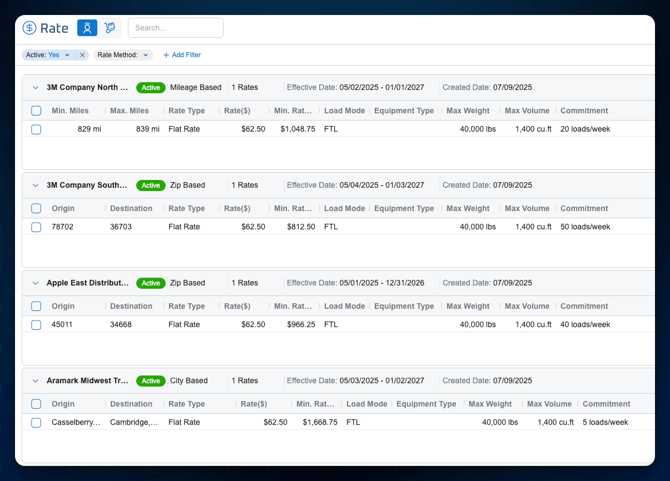

Rate Matrix Table View
|
Column |
Description |
|---|---|
|
Company Name |
Customer entity (e.g., Gap Inc Central Distribution) |
|
Active |
Status of the rate agreement |
|
Rate Method |
Method used to determine rate (City Based, Zip Based, Mileage Based) |
|
Total Rates |
Number of lanes or rule entries in the agreement |
|
Effective Date |
Start date when the rate becomes valid |
|
Expiration Date |
End date after which the rate is no longer used |
|
Created Date |
Date the rate was created in the system |
Rate Detail Panel
Clicking on a rate entry opens the Rate Details Panel showing:
-
Effective / Expiration / Created Date
-
Rate Method: City Based, Zip Based, or Mileage Based
-
Individual Rate Entries:
-
Origin and Destination
-
Rate ($)
-
Min. Commitment Rate ($)
-
Load Mode: FTL or Partial
-
Equipment Type (optional)
-
Max Weight (lbs)
-
Max Volume (cu.ft)
-
Weekly Commitment (e.g., 10 loads/week)
-
Example:
Customer: Gap Inc Central Distribution
Lane: West Melbourne, FL → Port Richey, FL
Rate: $62.50
Commitment: 10 loads/week
Min. Commitment Rate: $158.75
Max Weight: 40,000 lbs
Max Volume: 1,400 cu.ft
Mode: FTL
Data Dictionary
|
Field |
Description |
Example |
|---|---|---|
|
Company Name |
Customer receiving the rate |
Gap Inc Central Distribution |
|
Rate Method |
Basis of calculation (City, Zip, Mileage) |
City Based |
|
Rate Type |
Flat Rate or Tiered |
Flat Rate |
|
Origin / Destination |
Start and end points of rated lane |
West Melbourne, FL → Port Richey, FL |
|
Rate ($) |
Standard contracted price for the lane |
$62.50 |
|
Min. Commitment Rate ($) |
Required revenue per committed load |
$158.75 |
|
Load Mode |
FTL or Partial |
FTL |
|
Equipment Type |
Trailer requirement (optional) |
Van |
|
Max Weight |
Maximum weight allowed per load |
40,000 lbs |
|
Max Volume |
Maximum volume in cubic feet |
1,400 cu.ft |
|
Commitment |
Minimum volume required per week |
10 loads/week |
|
Effective Date |
When the rate starts |
04/30/2025 |
|
Expiration Date |
When the rate ends |
12/30/2026 |
Rate Method Types
|
Method |
Description |
|---|---|
|
City Based |
Applies to specific origin and destination cities. |
|
Zip Based |
Applies to shipments between specific zip codes. |
|
Mileage Based |
Dynamically calculates rates based on trip mileage. |
